Product Model

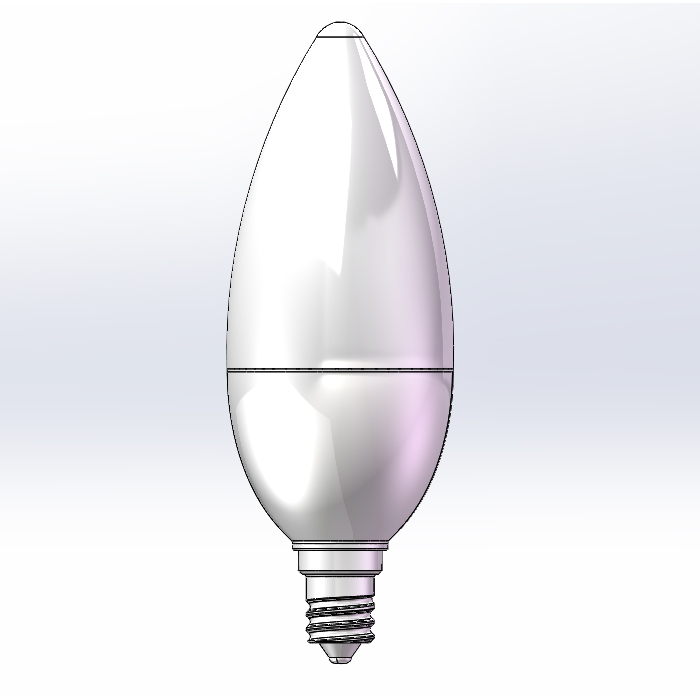

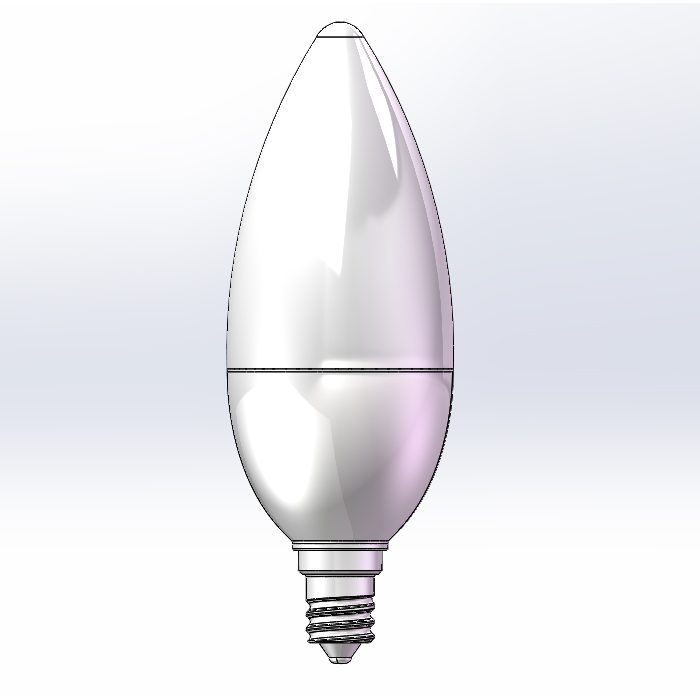

B11 40WE Basic G2

B11 60WE Basic G2

B11 40WE CEC G1

B11 60WE CEC G2

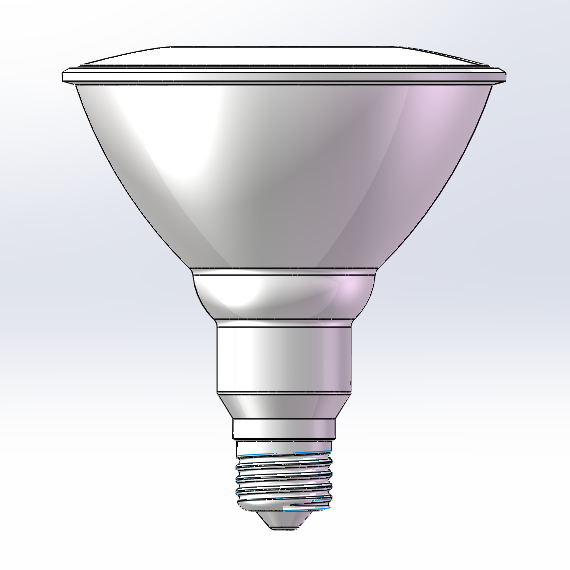

Par38 120W NDM       Sensor G1

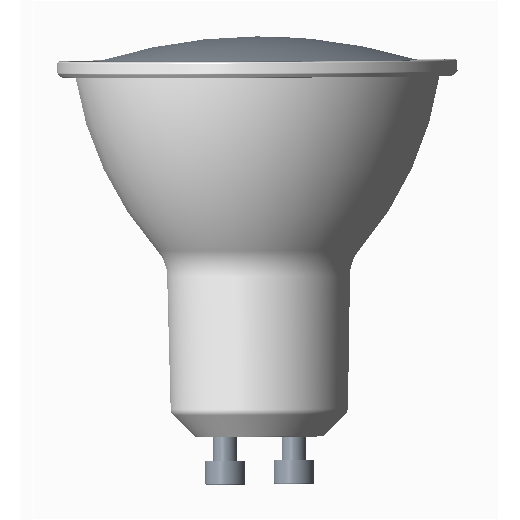

MR16 DIM ES

BOM code

107581

107582

107513

107551

107546

107444

Operating Voltage

120V(108-132VAC)

120V(108-132VAC)

120V(108-132VAC)

120V(108-132VAC)

120V(108-132VAC)

120V(108-132VAC)

Operating Frequency

60Hz

60Hz

60Hz

60Hz

60Hz

60Hz

Input Power  ±10%

4.5W

6.5W

4.5W

6.5W

13W

6W

Power factor

0.9

0.9

0.9

0.9

0.9

0.7

Luminous flux  ±10%

300/315

475/500

350/370

475/500

1200/1260

470

Efficacy

75

75

75

75

83.5

70

CRI(Ra)&CCT

827/850

827/850

927/950

927/950

930/950

830/850

Operating Temp.

-20~45℃

-20~45℃

-20~45℃

-20~45℃

-20~45℃

-20~45℃

Base(Cap)

E12

E12

E12

E12

E26

GU10

Dimensions

102*38

102*38

102*38

102*38

132*121

53.5*50

Driver

AC/DC

AC/DC

AC/DC

AC/DC

AC/DC

AC/DC

Certification

UL/ES

UL/ES

UL/ES/CEC

UL/ES/CEC

UL/ES

UL/ES

LED patents

YES

YES

YES

YES

YES

YES

Beam Angle(±10%)

260°

260°

260°

260°

40°

40°

Lifetime (70% lumen )

11000hrs

11000hrs

11000hrs

11000hrs

25000hrs

25000hrs
